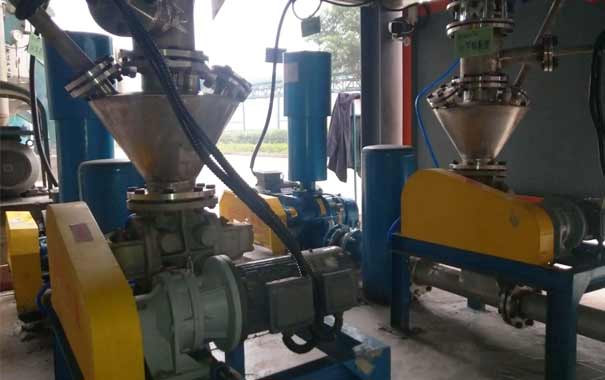

Working Principle of Dilute Phase Medium and Low Pressure Vacuum Suction Pneumatic Conveying System
The Roots vacuum pump installed at the end of the conveying system is used to suck the air in the system, forming a negative air flow lower than atmospheric pressure in the conveying pipe, and the materials enter the pipe from the suction nozzle together with the atmosphere,
As the gas flow is delivered to the terminal separator, the material particles are separated from the gas flow by gravity or centrifugal force, and the gas is discharged into the atmosphere by centrifugal fan or Roots vacuum pump after being dusted.
Characteristics of dilute phase medium and low pressure vacuum suction pneumatic conveying system
This system is a pneumatic conveying system that continuously sucks and delivers materials with Roots vacuum pump as the air source. The system has the functions of conveying materials from multiple places to one place in a centralized manner; Low transmission pressure, reliable transmission
The equipment is simple. As the pressure in the system is lower than the atmospheric pressure, the conveyed materials will not overflow from the system. As the suction nozzle absorbs materials, the dust at the reclaiming point can be avoided, and the production efficiency is high.
The purpose of pneumatic conveying includes: scientific research, chemical industry, petroleum, desulfurization and denitrification, steel, grain food, warehouse, feed processing, breeding powder engineering, environmental protection, factory, ship, port, wharf. Logistics, transportation, postal service. The purpose of pneumatic conveying is: scientific research, chemical industry, petroleum, desulfurization and denitrification, steel, grain food, warehouse, feed processing
, aquaculture powder engineering, environmental protection, factory ships, ports, docks. Logistics, transportation, postal service. Wide application: the products are used in electric power, metallurgy, petrochemical, plastic, food, building materials and hydropower industries. It is suitable for pneumatic conveying of fly ash, cement raw meal, mineral powder, limestone powder, plastic rubber particles, aluminum oxide powder, etc. in power plants.
Selected materials: all carefully selected, exquisite structure, durable, stable performance, less after-sales failure rate.
Easy maintenance: simple maintenance, few failures, long service life (low speed, less wear, easy maintenance)
Equipment use industry: petrochemical industry, steel industry, pneumatic conveying, bio pharmaceutical industry, alcohol industry, cement industry, environmental protection industry, food industry, coal mine.
When you need to purchase Dilute phase medium and low pressure roots blower vacuum suction pneumatic conveying system Please inform the following items in detail:
1. Use of Roots blower: sewage treatment, aquaculture, pneumatic conveying, etc
2. Fan specifications: caliber, required air volume, pressure rise, etc
3. Transmission medium: air, gas, biogas and other corrosive gases
4. Equipment requirements: form, cycle number, voltage, single-phase or three-phase
5. Equipment service conditions: indoor or outdoor, ambient temperature
6. Fan accessories
7. Fan color (with or without specified color
8. Note: the allowable range of specified flow and pressure rise (vacuum degree) is ± 5%
Shandong Xinqianshun Machinery Co., Ltd It is a specialty integrating design, development and sales Roots blower manufacturer The company is located in the east of Mingshui City, Zhangqiu City, Shandong Province, with extremely convenient transportation.
The company mainly produces XQSSR series Three blade roots blower 。 This product absorbs advanced technology and relies on a new generation of efficient and energy-saving products developed by scientific research institutes. It has reasonable structure, small size, high efficiency, low noise, stable operation, long service life, convenient maintenance and other characteristics, and is widely used in sewage treatment, mining, metallurgy, chemicals, building materials, electricity, light industry, flour, aquaculture and other fields. Over the years, it has been well received by users. The company always faces the future with new ideas, new attitudes, new perspectives, broad mind and unprecedented boldness 【 see more 】
