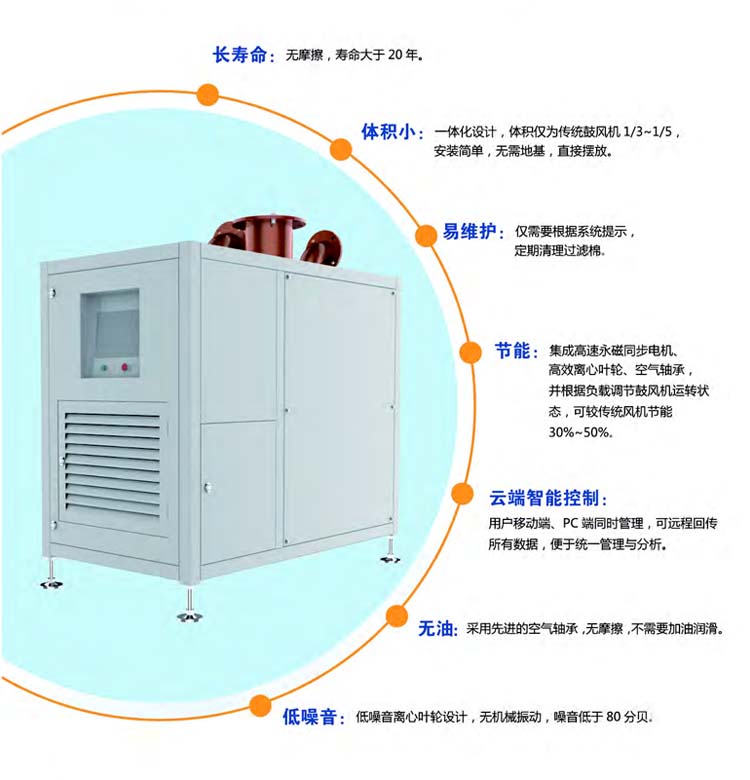

Product characteristics

1. Long life: no friction, service life more than 20 years.

2. Small size: integrated design, the volume is only 1/3~1/5 of the traditional blower, simple installation, no foundation required, and placed directly.

3. Easy maintenance: only need to clean the filter cotton regularly according to the system prompts.

4. Energy saving: integrate high-efficiency centrifugal impeller and air bearing of high-speed permanent magnet synchronous motor, and adjust the running state of blower according to the load, which can save 30%~50% energy compared with traditional fans

5. Cloud intelligent control: the user's mobile terminal and PC terminal can be managed at the same time, and all data can be returned remotely for unified management and analysis.

6. Oil free: advanced air bearing is adopted, without friction and lubrication.

7. Low noise: low noise centrifugal impeller design, no mechanical vibration, noise less than 80 decibels.

01 Air suspension bearing

·Minimal friction, smooth operation, no creeping phenomenon;

·High running speed, maximum speed 1000000rpm

·No heating;

·Suitable for - 180~600 ℃ wide temperature range;

·No oil, no pollution to the environment;

·Lifetime maintenance free.

02 High speed permanent magnet synchronous motor

·The maximum speed can reach 400000rpm;

·40000 fault free start and stop;

·The motor efficiency can reach more than 98%;

·Simple structure and small volume;

·The motor is directly connected to the impeller without power transmission loss.

03 Aero three-dimensional flow centrifugal impeller

·Three dimensional flow backward curved pneumatic design, high efficiency, wide working range;

·Five axis linkage, high-speed, high-precision milling forming;

·High strength aviation aluminum material is selected, and the surface is hard anodized, with high strength, good corrosion resistance and service life of more than 20 years;

·According to the actual needs of users, special high-efficiency impeller can be designed to pursue the best energy-saving effect.

04 High speed vector control frequency converter

·Equipped with dedicated high-speed vector control frequency converter for permanent magnet synchronous motor, the high-speed rotation of motor can be quickly adjusted through frequency change;

·Low starting current;

·Frequency converter efficiency is greater than 97%;

·Accurate speed control.

05 Cloud Intelligent Control System

·Equipped with touch screen, which can adjust and view the running status of equipment on site;

·It has anti surge protection function to ensure the safe operation of the product;

·Multiple operation modes are provided, which can intelligently adjust the pressure and flow according to the changes of external factors;

·Support multiple communication protocols, and realize real-time remote monitoring and control of the whole process of equipment operation status;

·Full life cycle data storage;

·Cloud intelligent control system, early warning equipment failure.

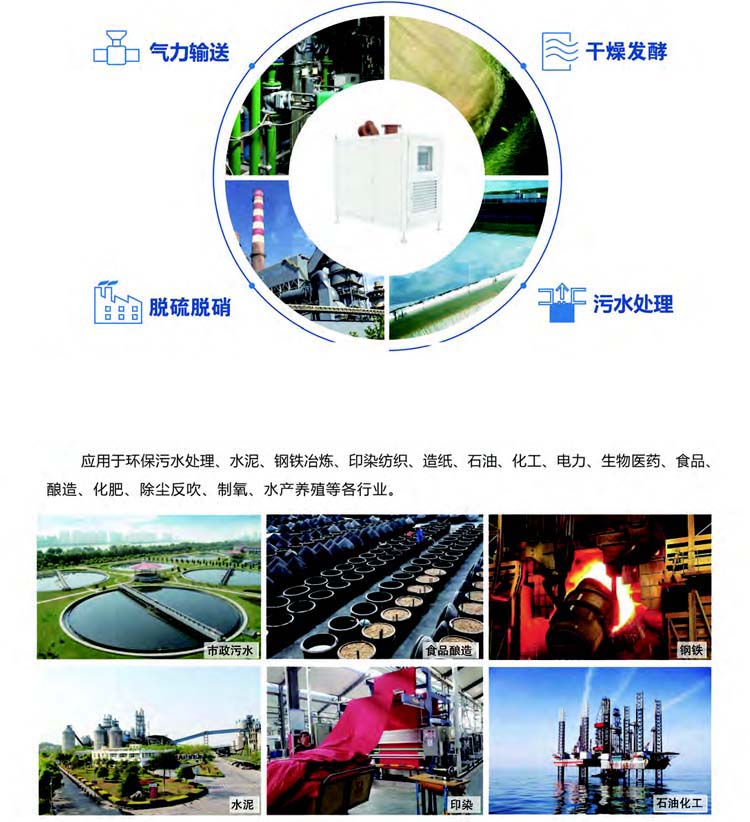

Application scenarios

1. Pneumatic conveying 2. Drying fermentation 3. Desulfurization and denitrification 4. Sewage treatment

Application industry: It is used in environmental sewage treatment, cement, steel smelting, printing and dyeing textile, paper making, petroleum, chemical industry, electricity, biomedicine, food, brewing, fertilizer, dust removal and blowback, oxygen production, aquaculture and other industries.

Shandong Xinqianshun Machinery Co., Ltd It is a specialty integrating design, development and sales Roots blower manufacturer The company is located in the east of Mingshui City, Zhangqiu City, Shandong Province, with extremely convenient transportation.
The company mainly produces XQSSR series Three blade roots blower 。 This product absorbs advanced technology and relies on a new generation of efficient and energy-saving products developed by scientific research institutes. It has reasonable structure, small size, high efficiency, low noise, stable operation, long service life, convenient maintenance and other characteristics, and is widely used in sewage treatment, mining, metallurgy, chemicals, building materials, electricity, light industry, flour, aquaculture and other fields. Over the years, it has been well received by users. The company always faces the future with new ideas, new attitudes, new perspectives, broad mind and unprecedented boldness 【 see more
