(1) concentrated Roots Blower The operating pressure is 58.8kPa-98kPa.
(2) The impeller of intensive roots blower adopts compound profile, with perfect meshing, less leakage and high efficiency.
(3) The impeller of high-pressure roots blower is made of nodular cast iron, and its contour is processed by CNC machine tools. The gear is of Class 5 precision, and imported bearings are used. The rotor dynamic balance quality is not lower than Class G6.3. The fan has low noise and stable operation 。
(4) Dense Roots blower The air volume can range from 0.78 m3/min to 198.1 m3/min, with large coverage and wide application range.
(5) The whole product has compact structure, small volume and light weight.
(6) Long service life and simple maintenance.

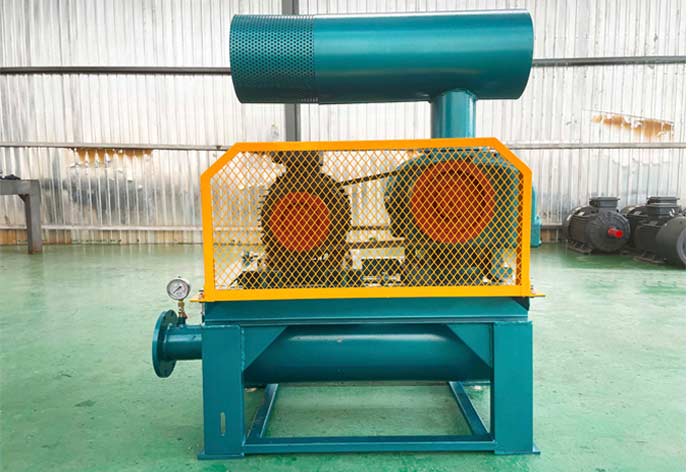

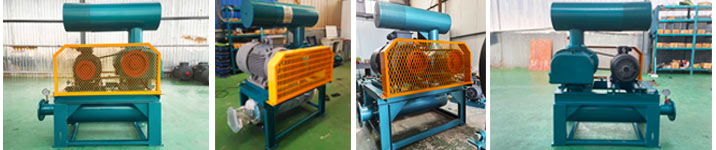

The following figure shows the real picture of the intensive roots blower workshop. Roots blowers are not only the intensive roots blowers, but also many kinds. If necessary, you can see Roots Blower classification
Universal base, belt cover, intensive roots blower pulley, motor pulley, V-belt, safety valve, pressure gauge, air inlet silencer, air outlet silencer, anchor bolt, check valve, elastic joint, gear oil.

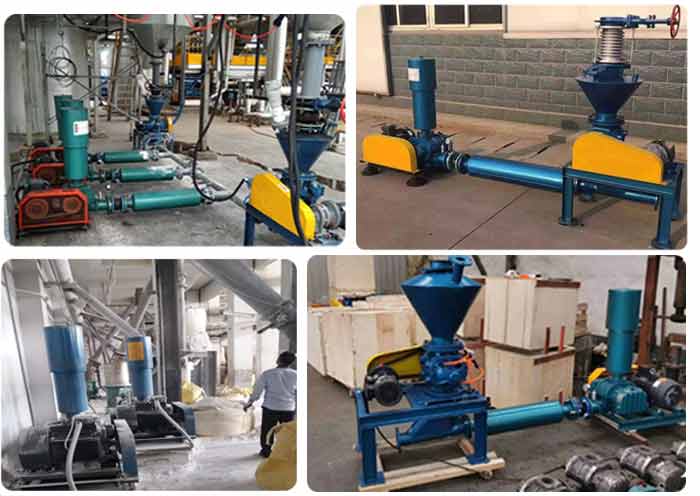

It is widely used in sewage treatment, aquaculture, pneumatic conveying, vacuum packaging, coal washing, combustion support, pressurization, casting, mining, metallurgy, chemical industry, light industry, building materials, power, flour, sand blasting, vacuum, etc.
Roots Blower What is the difference from the intensive Roots blower?
The vertical three leaf type and horizontal three leaf type of the ordinary three leaf roots blower are mainly related to the direction of air inlet and outlet. The working principle is the same. Compared with the dense roots blower, the main differences are as follows:
1. The ordinary three leaf roots blower is suitable for planning a wide site, such as the working condition with a separate machine room;
2. The price of ordinary three leaf roots blower is lower than that of intensive roots blower, but it also depends on the specific model;
3. The working condition limited by the site area and with sufficient space height is suitable for the intensive roots blower;
4. The removal and maintenance of intensive roots blower is relatively troublesome, while the removal and maintenance of ordinary three leaf roots blower is simpler;
5. Whether it is a three leaf Roots blower or a dense Roots blower, the working principle is the same, and there are some differences in the structure, while there are also some differences in the structure of accessories.
The specific selection can be determined according to the actual situation. If the site is not enough, then choose the intensive roots blower. If the site is enough, then we recommend the ordinary three leaf roots blower.
We guarantee that we will deliver to customers in quantity and serve each customer well. We are committed to being both customers and friends, making friends all over the country and serving all over the country!
Shandong Xinqianshun Machinery Co., Ltd It is a specialty integrating design, development and sales Roots blower manufacturer The company is located in the east of Mingshui City, Zhangqiu City, Shandong Province, with extremely convenient transportation.
The company mainly produces XQSSR series Three blade roots blower 。 This product absorbs advanced technology and relies on a new generation of efficient and energy-saving products developed by scientific research institutes. It has reasonable structure, small size, high efficiency, low noise, stable operation, long service life, convenient maintenance and other characteristics, and is widely used in sewage treatment, mining, metallurgy, chemicals, building materials, electricity, light industry, flour, aquaculture and other fields. Over the years, it has been well received by users. The company always faces the future with new ideas, new attitudes, new perspectives, broad mind and unprecedented boldness 【 see more
