Roots blower manufacturer Delivery of Jiangxi Roots vacuum pump XQSSR125v5 sets

On June 10, after working overtime for two days, another batch of goods was delivered to Jiangxi. Every detail is to improve. We talk about quality. Our goal is to pursue repeat customers.
The following is the delivery details

Roots vacuum pump XQSSR125v (vh)	5.5kw motor	3 sets
Roots vacuum pump XQSSR 125LV	7.5kw motor	2 sets

The picture below is the actual picture of Roots vacuum pump workshop

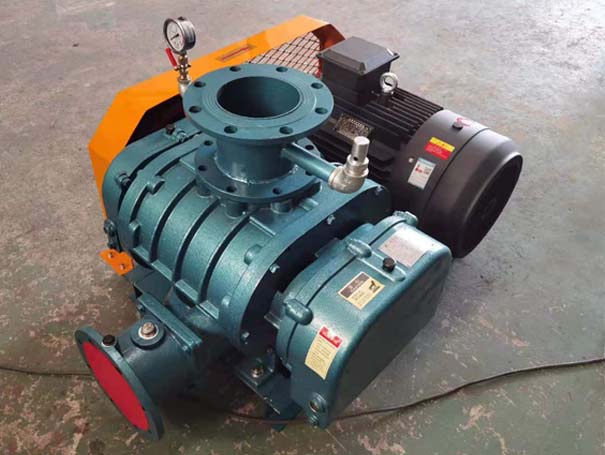

Roots blower manufacturer delivered 5 sets of Jiangxi Roots vacuum pump XQSSR125v (Figure 1)

Here is Roots vacuum pump Operation precautions:

1. Roots vacuum pump has uniform acoustic response during operation, and there is no noise and abnormal vibration during operation.

2. Pay attention to the motor load and the temperature rise of each part of the pump. Under normal conditions, the high temperature rise of the pump shall not exceed 40 ℃, and the working temperature shall not exceed 80 ℃.

3. If oil leakage is found during the work, please stop the work immediately and conduct inspection and maintenance after pressure relief. After oil leakage is found, Roots vacuum pump is not allowed to continue working or maintenance under pressure.

4. In the process of work, the normal inlet and outlet of cooling water must be ensured.

Preparations before starting Roots vacuum pump device:

1. Check whether the water level in the water tank of the flushing pump (front pump) exceeds 3/4 of the water tank, and if not, make up.

2. Check whether the water used in the water tank is clean. It is forbidden to use sewage containing silt to avoid blocking the pipeline. Roots vacuum pump increases the wear of pump impeller, increases the load of motor and leads to failure, thus affecting the service life of flushing pump.

3. Check the lubricating oil level in the intermediate pump and main pump. It must be greater than 3/4 of the oil window. At the same time, check the color of the lubricating oil. If there are many milky white or black impurities, please inform the technician to change the lubricating oil.

4. Check whether the circulating cooling water circuit of intermediate pump and main pump is intact, open the inlet and outlet valves of circulating cooling water, and check whether the inlet and outlet of circulating cooling water are normal.

5. Check whether the drain valve of buffer tank at the bottom of intermediate pump is closed.

6. Check whether the circuit of Roots vacuum pump is intact and whether the description of control cabinet is normal.

7. Check whether the starting pressure of the intermediate pump and the main pump of the contact pressure gauge of roots vacuum pump electrode is normal (the starting inlet pressure of the intermediate pump is above 0.065Mpa, and the starting inlet pressure of the main pump is above 0.065Mpa). Above 0.085Mpa).

8 After the above items are checked and confirmed to be correct, the roots vacuum pump can be started.

Roots vacuum pump: What data are usually required for the purchase of Roots vacuum pump as the basis for model selection?

one Roots vacuum pump Use of

The purpose can actually help us choose, especially those who have no parameters. If there are no specific parameters, the selection will be troublesome. Try to provide some other parameters, such as purpose. We can use our past experience to help us make choices.

2. Transmission medium

This is more important because if the inhaled medium is toxic gas or contains toxic gas, or contains strong corrosive gas, it has a very important impact on the selection.

3. Working environment

Since some areas are high altitude areas, such as Xinjiang and Tibet, it is necessary to provide working environment. When selecting these areas (such as coastal cities), the selection is different and varies greatly, so careful calculation is required.

4. Requirements for working conditions

The working condition requirements are: flow, pressure, temperature and other parameters are very important for selection. With these parameters, you can make a rough selection and position the model well.

5. Motor

Whether you need a motor or not will directly affect the price of the vacuum pump. If you need a motor, please indicate in advance?
Welcome new and old customers to visit our factory, and we hope you can give us valuable suggestions!
