Roots blower in cement plant - Roots blower in cement plant pneumatic conveying desulfurization

Source: Roots blower manufacturer Published on: October 20, 2021 Hits:

Precautions before starting Roots blower in cement plant
How to operate the Roots blower for conveying in the cement plant?

Roots blower is mainly used for pneumatic conveying and flue gas desulfurization in cement plant.

① Pneumatic conveying refers to conveying granular materials along the airflow direction in sealed pipes, which can be divided into vertical or inclined conveying materials.

② There are many sr Roots blowers used in flue gas desulfurization. First, this type of Roots blower can meet the needs of different users, and its sub products are manufactured according to high standards and strict requirements. Product quality is guaranteed and good after-sales service is provided to ensure that customer needs are met.

What should be paid attention to when starting Roots blower in cement plant?

① Check the installation quality of fasteners and locating pins;

② Check the installation quality of inlet and exhaust pipes and valves;

③ Check whether the assembly clearance of the blower meets the requirements;

④ Fully open the air inlet and outlet valves of the blower to turn the rotor, and pay attention to listen for abnormal noise in each part;

⑤ Check whether all around the base of the components are well padded and whether the foundation bolts are fastened;

⑥ Before starting Roots blower, lubricating oil shall be added to the main oil tank and auxiliary oil tank to 3mm/2mm of the center of the oil pointer, and the lubricating oil shall be replaced every three months

⑦ Check the fan and motor, and the coaxiality of the driving shaft shall not exceed 0.1mm, otherwise it will cause the fan vibration, oil leakage and other phenomena, affecting the service life of the fan

⑧ Supply water to the cooling part, the temperature of cooling water shall not exceed 25 ℃, and the cooling water volume shall be 10L/min;

⑨ Due to the pressure in the main and auxiliary oil tanks, the upper and lower oil plugs of the main and auxiliary oil tanks should be tightened, otherwise oil leakage will occur;

⑩ Check the rotation direction of the motor, which must conform to the direction shown on the steering label, otherwise the fan can not exhaust normally, and the phenomenon of fan blade collision may also occur. When the water is aerated, the water will flow into the fan in the reverse direction, and the transported objects will be sucked into the fan during pneumatic transmission, causing accidents.

Open the vent valve and outlet valve of the fan and start the fan after checking the environment of the Biloz blower and ensuring that the instrument and electrical appliances are in good condition. Slowly close the vent valve after the roots blower operates normally, and then the pressure gauge of the blower rises to 0.04-0.05Mpa.

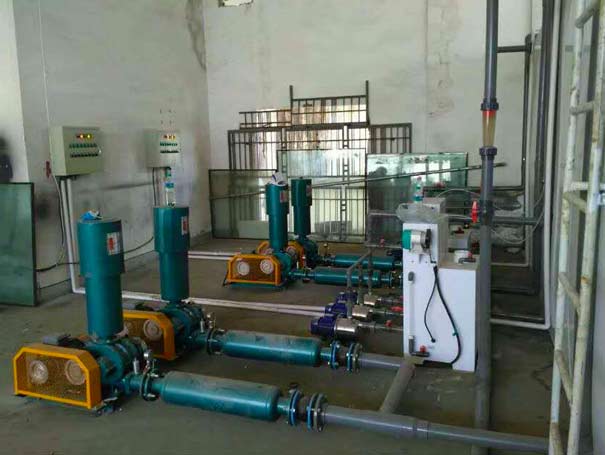

Roots blower in cement plant - Roots blower in cement plant pneumatic conveying desulfurization (Figure 2)

The cement plant can not do without the use of roots blower:

Roots blower also plays an irreplaceable role in cement plants. At present, the proportion of electricity cost in the cement plant is getting higher and higher in production and life. As a major power consumer, the urgent thing for the cement plant is to reduce the electricity cost. In this regard, the Roots blower manufacturer suggested that the vertical kiln furnace cement plant use Roots blower inverter motor for technical transformation and have achieved very significant economic results. It has changed the traditional production mode of adjusting the air pressure or air volume by adjusting the opening of the outlet (inlet) valve. The labor intensity is reduced, the timeliness of adjustment is good, the product qualification rate is improved, and the energy consumption per unit time is significantly reduced.

Profile of Roots Blower Company of Cement Plant:

Shandong Xinqianshun Machinery Co., Ltd. is a professional company integrating design, development and sales Roots blower manufacturer The company is located in the east of Mingshui City, Zhangqiu City, Shandong Province, with extremely convenient transportation.
The company mainly produces XQSSR series Three blade roots blower 。 This product absorbs advanced technology and relies on a new generation of efficient and energy-saving products developed by scientific research institutes. It has reasonable structure, small size, high efficiency, low noise, stable operation, long service life, convenient maintenance and other characteristics, and is widely used in sewage treatment, mining, metallurgy, chemicals, building materials, electricity, light industry, flour, aquaculture and other fields. Over the years, it has been well received by users. The company always faces the future with new ideas, new attitudes, new perspectives, broad mind and unprecedented boldness 【 see more 】
