Disassembly diagram of Roots blower installation diagram steps:

Structure introduction of Roots blower:

Roots blower is mainly composed of the following parts,

① Motor

② Host

③ Base

④ Silencer

⑤ Accessories: pressure gauge, safety valve, belt cover, V-belt.

Roots Blower The installation of is also very simple. The motor, host and base parts will be installed by the manufacturer before leaving the factory. In order to facilitate transportation, only two long mufflers are left to be installed, which reduces the space proportion of goods. Now let's explain how to install Roots blower:

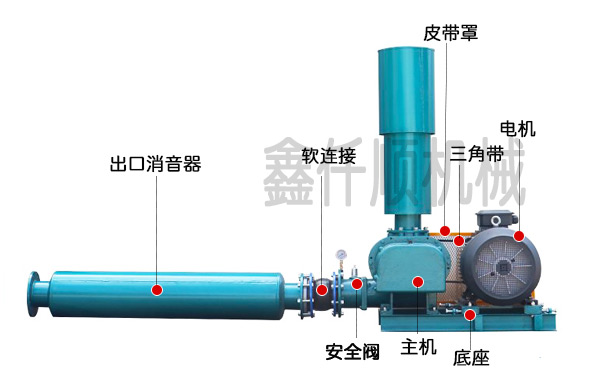

The structure and installation of Roots blower is not as complex as expected. Its structure is very simple and the installation is also very simple. The following is the installation structure diagram of Roots blower. We can see it at a glance. If you are a master without any machine and equipment foundation, you can also assemble it according to the following figure, but different types of Roots blower may be slightly different, In this way, we can make adjustments according to the actual situation. Before assembly, ask the Roots blower manufacturer for installation and use methods. Generally, the Roots blower installation instructions will be delivered to you randomly, and you can install according to the Roots blower instructions.

Next, let's first understand the working principle of Roots blower. Roots blower is a positive displacement blower, which separates the air inlet through the engagement of a group of rotors. The rotor rotates by a pair of synchronous gears, doing the opposite movement, pushing the inhaled gas from the suction port to the exhaust port without internal pressure, and the moment the gas reaches the exhaust port, It is pressurized due to the backflow of high-pressure air flow on the exhaust side, thus completing the gas transmission.

So how can we install Roots blower? It is only necessary to assemble the two silencers according to the position shown in the figure above. Generally, the Roots blower used in the fishpond is connected to the vent pipe at the air outlet. If it is a pneumatic transport device, the air outlet is facing the feeder. In addition, Roots blower can also be used as vacuum pumping equipment, but the access method is just the opposite.

The above is how to install Roots blower and the installation drawing of Roots blower. Xinqianshun Roots blower manufacturer welcomes your visit and consultation!
